Model Number |
||||||
|
Vehicle Power Supply Type |

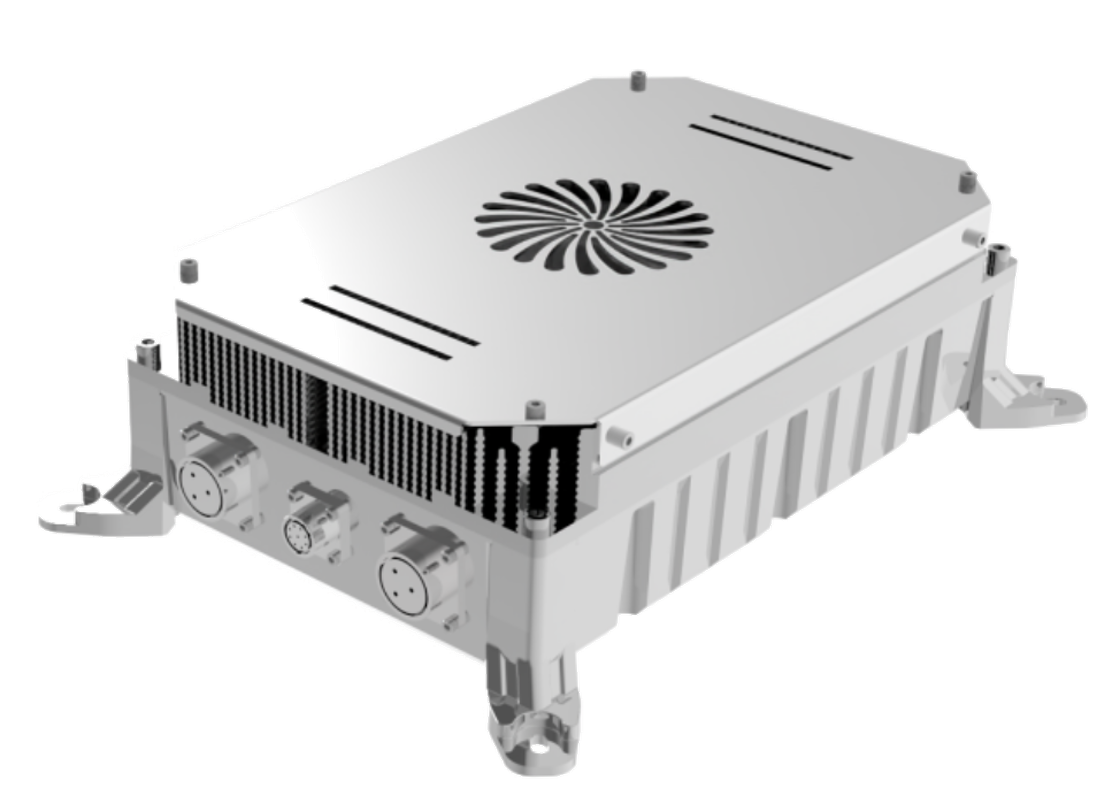

Bidirectional vehicle OBC module |
|||||
|
Model Number |
LK1671 |
LK1672 |
LK1673 |
LK1674 |
LK1675 |
LK1676 |
|
AC-DC translate |
||||||
|
Rated Input Voltage |
220VAC |
|||||
|
Input Voltage Range |
90～265VAC |
|||||
|
Rated input voltage frequency |
50Hz |
|||||
|
Input frequency range |
45～65Hz |
|||||
|
Starting Impulse Current |
≤32A |
|||||
|
Input power factor |
≥0.99（@220Vin,Pomax） |
|||||
|
Rated Output Power |
6.6KW |
|||||
|
Rated Output Voltage |
720 |
540 |
360 |
144 |
108 |
80 |
|
Output Voltage Range |
0~850 |
0~720 |
0~500 |
0~190 |
0~140 |
0~105 |
|
Output Current Range |
0～9 |
0~12 |
0~18 |
0~44 |
0~60 |
0~80 |
|
Voltage regulation accuracy |
±1% |
|||||
|
Current regulation accuracy |
±0.5A（Io≤10A）&≤±5%（Io>10A） |
|||||
|
ripple coefficient of voltage |
≤1% |
|||||
|
Output Response Time |
≤200mS |
|||||
|
Typical Efficiency |
≥94% |
≥94% |
≥94% |
≥92% |
≥92% |
≥92% |
|
DC-AC translate |
||||||
|
Rated Input Voltage |
720 |
540 |
360 |
144 |
108 |
80 |
|
Input Voltage Range |
0~850 |
0~720 |
0~500 |
0~190 |
0~140 |
0~105 |
|
Input Voltage Range |
0～9 |
0~12 |
0~18 |
0~44 |
0~60 |
0~80 |
|
Rated Output Power |
6KW |
|||||
|
Rated Output Voltage |
220VAC |
|||||
|
Rated Output voltage frequency |
50Hz |
|||||
|
Voltage THD |
≤5% |
|||||
|
Output Response Time |
≤1S |
|||||
|
Typical Efficiency |
≥94% |
≥94% |
≥94% |
≥92% |
≥92% |
≥92% |
|
Protective Characteristic |
||||||
|
Over and Under Voltage Protection |
Input over and under voltage shutdown can be self-recovery, output over and under voltage shutdown can be self-recovery. |
|||||
|
Output Reverse Connection and Short Circuit Protection |
Output short circuit and reverse connection shutdown can be self-recovery |
|||||
|
Over Temperature Protection |
When the heat sink temperature is higher than 75 ° C, it will reduce the output power. And it will disconnect the circuit when the temperature is higher than 95 ° C. It will restore the output when the charging temperature is lower than 85 ° C. |
|||||
|
Environmental Condition |
||||||
|
Operating Ambient Temperature |
-40℃ ~ +85℃(internal temperature of integrated system cavity); Water cooling system liquid temperature ≤65℃ |
|||||
|
Storage temperature |
-40～95℃ |
|||||
|
Relative humidity |
5%～95% |
|||||
|
Altitude |
0～3000m |
|||||
|
Dust proof and waterproof |
IP67 |
|||||
|
Cooling Function |
Modular design, water cooling or air cooling housing/substrate is required |
|||||
|
Communication Function |
CAN network |
|||||
|
Charging Function |
Receive charging instructions to charge normally; No command charger is in standby state |
|||||
|
Safety Characteristic |
||||||
|
Dielectric strength |
Primary side - secondary side 2000VAC Original side - Housing 1500VAC |
|||||
|
Insulation resistance |
Primary side - secondary side ≥50MΩ |
|||||
|
Harmonic current |
Meet the requirements of 6.7.3.1 in GB17625.1-2003 |
|||||
|
Vibration Resistance |
After X,Y,Z three directions of sweep frequency vibration testing, no damage for parts , no loose for fastening piece |
|||||
|
Impact Resistance |
See Requirements 6.5 in GB/T15139-1994 |
|||||
|
Resistance to Industrial solvents |
Metal parts have a good corrosion protection layer |
|||||
|
Salt Spray Resistance |
See GB/T 2423.17 |
|||||
|
Durability |
Not less than GB/T 24347-2009 |
|||||
|
EMC characteristics |
||||||
|
Electromagnetic immunity |
Meet the requirements of 11.3.1 in GB/T 18487.3 |
|||||
|
Electromagnetic disturbance |
Meets the requirements of 11.3.2 in GB/T 18487.3 |
|||||
