30KW Air-Cooled Bidirectional DC-DC Converter for Stable Power System Integration
This Lincoren unit is built for integrators that need controlled bidirectional energy flow across demanding DC architectures. As a bidirectional dc dc converter supplier, the page supports sourcing teams that are comparing communication options, enclosure protection, voltage window, and project-level control compatibility before moving into evaluation.
The product information highlights fully digital control, four-quadrant bidirectional buck-boost operation, CAN communication with Bootloader support, and combined hardware plus software protection. Buyers looking for a 30kw dc dc converter manufacturer can review the visible 0 to 1000VDC operating range, 80A current capacity, and IP67 die-cast aluminum housing as practical checkpoints for technical review.
Rated Power
30KW for bidirectional transfer in high-voltage DC projects.
Control & Interface
Fully digital control with CAN communication and Bootloader support.
Housing Grade
IP67 die-cast aluminum enclosure for demanding installation conditions.

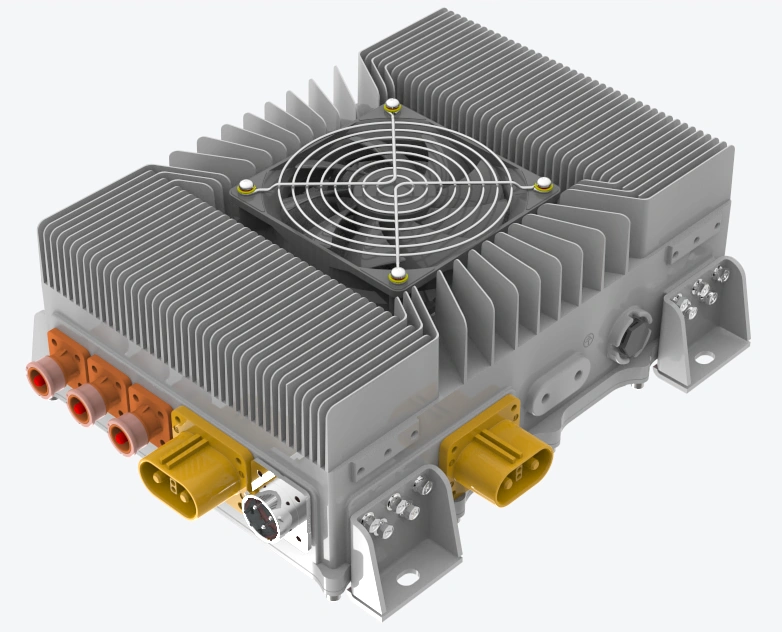

Product Media and Technical Review
The product visuals and specification data below help technical buyers review housing design, electrical range, control architecture, and integration readiness in one place.
Description
This 30KW air-cooled converter is positioned for bidirectional power exchange where system stability, repeatable control response, and physical enclosure durability all matter. The visible product data points to a modular vehicle-grade direction, four-quadrant bidirectional buck-boost logic, and software upgrade capability, which can help project teams align power conversion hardware with changing control strategies during integration and validation stages.
Product Specifications
| Item | Details |
|---|---|
| Product Name | 30KW Air-cooled Bidirectional DC-DC |
| Product Number | LK2690 |
| 30KW Configuration | LK2699-M16-XX |
| Cooling Method | Air-cooled |
| Rated Power | 30KW |
| Low Voltage Side Input / Output Voltage Range | 0 to 1000VDC |
| High Voltage Side Input / Output Voltage Range | 0 to 1000VDC |
| Low Voltage Side Input / Output Current Range | 0 to 80A |
| High Voltage Side Input / Output Current Range | 0 to 80A |
| Control Design | Fully digital control with four-quadrant bidirectional buck-boost operation |
| Communication | CAN communication and Bootloader support for online software updates |
| Protection and Housing | Hardware and software protection with IP67 die-cast aluminum enclosure |
Core Supply Advantages
Power range and voltage window are already visible, which helps purchasing teams compare project fit faster and reduce early-stage specification gaps.
Core Supply Advantages
CAN communication, Bootloader support, and fully digital control provide a clearer path for integration teams that need software-level coordination with wider system controls.
Core Supply Advantages
IP67 die-cast aluminum housing and dual-layer protection details support evaluation for mobile, outdoor, and industrial environments where enclosure durability matters.
Related Technical Articles
These Lincoren articles give purchasing and engineering teams extra context on 30KW model selection, air-cooled platform matching, and scalable power architecture planning.
Overview of Available 30KW Bidirectional DC-DC Converter Models for Industrial Integrators
A useful starting point for teams comparing model structure, platform suitability, and how a 30KW class converter can be selected for controlled industrial power transfer tasks.
Read ArticleChoosing the Right Air-Cooled DC-DC Converter for Robust Energy Storage Systems
This article supports project teams that need to weigh cooling approach, storage-system operating conditions, and converter selection criteria before approving a final architecture.
Read ArticleKey Features of the 30KW Bidirectional DC-DC Converter Supporting Scalable Power Solutions
A practical reference for reviewing the main converter characteristics that matter when scaling power platforms, validating interfaces, and checking control-oriented feature alignment.
Read ArticleVerified Procurement Feedback
These sample procurement comments reflect the type of evaluation points often raised during industrial DC power platform sourcing and technical comparison.
★★★★★
Power Electronics Sourcing Manager, Germany
We were looking for a converter platform with a wide DC range and communication clarity for a battery interface project. The visible CAN support and protection structure made the technical discussion much more direct.
★★★★★
EV Systems Integration Lead, Poland
For our evaluation stage, the combination of bidirectional control architecture, air cooling, and enclosure protection matched the kind of installation conditions we needed to review for a mobile high-voltage platform.
★★★★★
Energy Storage Project Buyer, United Arab Emirates
The listed 30KW rating and 0 to 1000VDC range helped us narrow the shortlist quickly. We also value products that show software update support because long project cycles often require parameter changes during validation.
Technical FAQ
These answers focus on the practical questions engineers and sourcing teams usually raise before converter evaluation moves into drawings, interface checks, and project confirmation.
What operating range does the 30KW air-cooled bidirectional DC-DC converter support?
The visible product data shows a 30KW configuration with 0 to 1000VDC voltage range on both sides and current range up to 80A. This suits projects that need controlled energy transfer between high-voltage subsystems, storage packs, and test platforms with a broad DC operating window.
How is this converter controlled in a vehicle or stationary power system?
The product is presented with fully digital control and CAN communication, plus Bootloader support for software updates. That helps engineering teams align command logic, operating feedback, and parameter management with the wider control architecture used in their power platform.
Is the converter suitable for outdoor or demanding installation conditions?
The product page states an IP67 die-cast aluminum enclosure. That makes the housing design relevant for installations where moisture resistance, dust protection, and mechanical durability matter in mobile equipment, outdoor cabinets, or industrial operating zones.
What protection strategy is highlighted for this model?
The visible description refers to both hardware and software protection. For buyers, that signals a design approach intended to manage fault conditions with more than one protection layer, which is useful when system reliability and controlled shutdown behavior are part of the review process.
Where can a 30KW bidirectional DC-DC converter fit in a project?
This power class can fit EV support systems, battery energy storage interfaces, charging and discharging platforms, laboratory validation benches, and industrial DC bus projects where bidirectional energy transfer and stable voltage conversion are required.
What should buyers confirm before placing a project order?
Buyers should confirm the real system voltage window, current demand, cooling conditions, communication protocol details, fault logic, connector arrangement, mounting space, and documentation requirements. Confirming those points early helps match the converter to the final operating profile.
