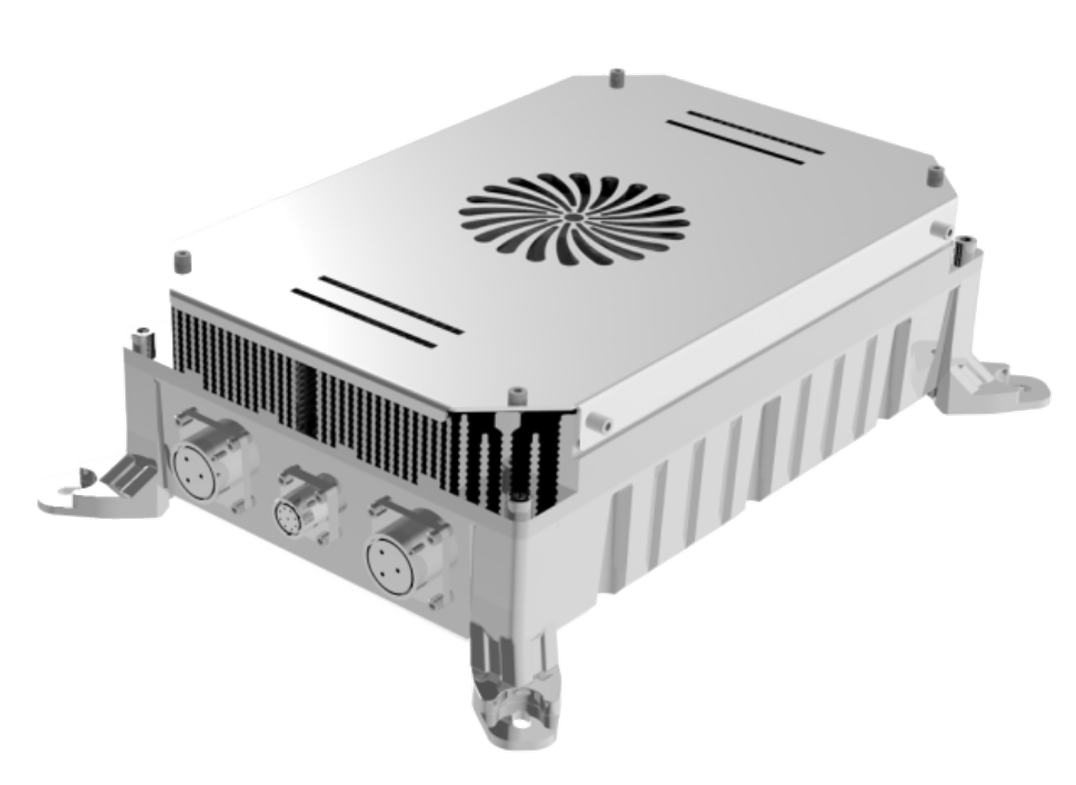

6.6 kW Air-cooled On-board Charger （OBC）Assembly
No.LK1610
- Air-cooled Heat Dissipation – with Over-temperature Protection / IP67 Protection Rating
- Digital Power Supply – Full Digital Control Technology
- Active PFC – Full-range Input of 90~290 VAC
- Electromagnetic Compatibility (EMC) – GB Requirements / Adaptable to CE and UL
- CAN Communication – Bootloader Supported
- Auxiliary Power Supply – Integrated 12V 3A Auxiliary Power Supply
- CC/CP – Wake-up and Processing Supported
Description
|
Product model
|
Rated Vin
|
Vin range
|
Rated Pout
|
Rated Vout
|
Vout range
|
Iout range
|
|
LK1611-M06-XX
|
220VAC
|
90~265VAC
|
6.6KW
|
720VDC
|
0~1000VDC
|
0~9A
|
|
LK1612-M06-XX
|
220VAC
|
90~265VAC
|
6.6KW
|
540VDC
|
0~720VDC
|
0~12A
|
|
LK1613-M06-XX
|
220VAC
|
90~265VAC
|
6.6KW
|
360VDC
|
0~500VDC
|
0~18A
|
|
LK1614-M06-XX
|
220VAC
|
90~265VAC
|
6.6KW
|
144VDC
|
0~200VDC
|
0~44A
|
|
LK1615-M06-XX
|
220VAC
|
90~265VAC
|
6.6KW
|
108VDC
|
0~140VDC
|
0~60A
|
|
LK1616-M06-XX
|
220VAC
|
90~265VAC
|
6.6KW
|
80VDC
|
0~105VDC
|
0~80A
|
Application Fields:
- Passenger Vehicles – Mini Passenger Vehicles – On-board Chargers
- Commercial Vehicles – Sanitation Vehicles/Mini Trucks/Mini Vans – On-board Chargers
- Electric Power Tools – Lawn Mowers – On-board Chargers
- Industrial Vehicles – Forklifts/High-lift Vehicles – On-board Chargers
- Autonomous Logistics Vehicles/Autonomous Cold Chain Vehicles – On-board Chargers
- Electric Motorcycles/Electric Tricycles/Four-wheel Electric Vehicles – On-board Chargers
- Logistics Vehicles/Ride-hailing Vehicles – Portable DC Chargers
