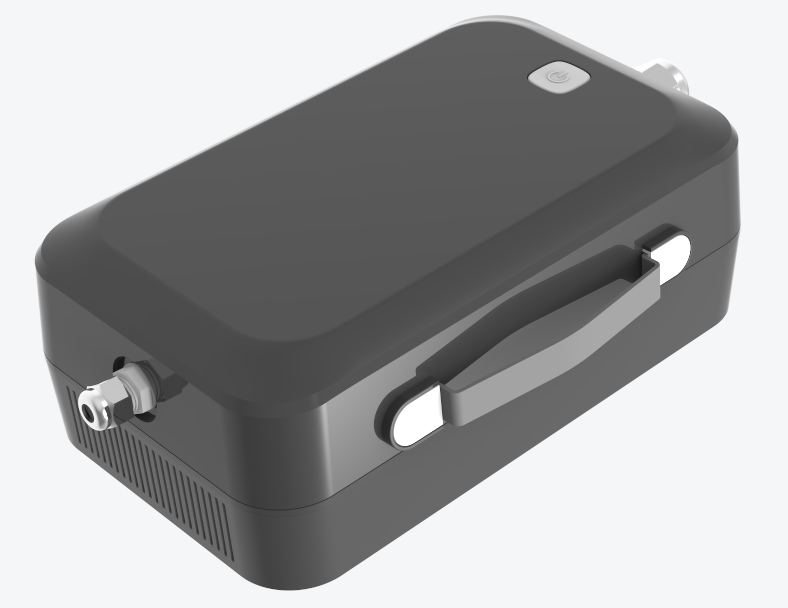

Name: 3.3 kW Portable Charger Assembly
Brand: Lincoren
SKU: LK1300

Description

Product Description

Functional Positioning and User Scope

The 3.3 kW portable charger Assembly is designed to deliver portable power solutions for various equipment and electric vehicles. Its compact size and mobility accommodate applications requiring on-the-go charging, including electric motorcycles, industrial vehicles, and small boats. The assembly fits commercial users seeking a reliable portable charger capable of operating across diverse environments.

Technical Features and Specifications

This unit integrates full digital control and active power factor correction (PFC), accepting input voltages from 90 to 290 VAC. It features multiple voltage output variants to match different power system requirements. The charger supports CAN communication with bootloader functionality for firmware upgrades. Additionally, it offers an optional bidirectional conversion with inverter output upgrades, and an independent air duct with an IP65 protection rating for durability. Compliance with CE and UL electromagnetic compatibility standards is included.

Application Fit and Use Value

The assembly is applicable for mobile charging scenarios such as electric power tools, commercial mini trucks, and golf carts. Its IP65 protection and cooling design support use in outdoor or industrial environments. Suitable for distributors or OEM/ODM buyers, this portable dc charger can adapt to wide-ranging business models and serve as a practical addition to fleets requiring flexible and consistent charging solutions.

Product Advantages

Procurement-Relevant Design and Compliance

The 3.3 kW portable charger Assembly incorporates source-backed features such as IP65 rating and CE/UL compliance for electromagnetic compatibility, addressing business requirements for certified and durable charging equipment. Its CAN communication interface with bootloader support allows firmware updates, supporting long-term operational adaptability.

Operational Fit and Customization Potential

With multiple voltage output options and optional inverter output upgrade, this charger assembly offers customization relevant to varied application needs. The independent air duct cooling system enhances reliability in demanding conditions, aligning with procurement considerations for robust portable car battery charger or portable dc charger solutions.

Product model	Rated Vin	Vin range	Rated Pout	Rated Vout	Vout range	Iout range
LK1301-M28-XX	220VAC	90~265VAC	3.3KW	540VDC	0~720VDC	0~6A
LK1302-M28-XX	220VAC	90~265VAC	3.3KW	360VDC	0~500VDC	0~10A
LK1303-M28-XX	220VAC	90~265VAC	3.3KW	144VDC	0~200VDC	0~22A
LK1304-M28-XX	220VAC	90~265VAC	3.3KW	108VDC	0~140VDC	0~30A
LK1305-M28-XX	220VAC	90~265VAC	3.3KW	72VDC	0~95VDC	0~45A
LK1306-M28-XX	220VAC	90~265VAC	3.3KW	48VDC	0~68VDC	0~60A
LK1307-M28-XX	220VAC	90~265VAC	3.3KW	24VDC	0~36VDC	0~100A

Application Fields:

Electric Power Tools – Lawn Mowers – Portable Chargers
Electric Vessels – Small Vessels – Portable Chargers
Industrial Vehicles – Forklifts/High-lift Vehicles – Portable Chargers
Electric Motorcycles – Portable Chargers
Electric Tricycles/Four-wheel Vehicles – Portable Chargers
Commercial Vehicles – Mini Trucks/Sanitation Vehicles/Mini Vans – Portable Chargers
Golf Carts/Low-speed Vehicles – Portable Chargers

FAQ

What are the main safety features included in the 3.3 kW portable charger Assembly?
We integrate dual software and hardware protection systems in our portable charger to ensure enhanced operational safety and system stability. This approach minimizes risks during charging and protects connected equipment in diverse environments.

Can you customize the 3.3 kW portable charger Assembly for different voltage requirements?
Yes, our 3.3 kW assembly offers multiple voltage output variants ranging from 24 VDC to 540 VDC. We provide customization options to suit your specific application, allowing you to select a custom portable charger that fits your equipment’s power needs.

How does your team support firmware updates and system integration?
Our charger supports the CAN communication interface with bootloader functionality, allowing straightforward firmware upgrades and integration flexibility. This facilitates long-term maintainability and adaptability for industrial clients needing tailored solutions.

What logistics and environmental protections come with your portable DC chargers?
All our portable DC chargers feature an IP65 protection rating and an independent air duct cooling system, making them suitable for harsh operating conditions. We ensure packaging and logistics comply with industry standards to deliver products safely and intact.
