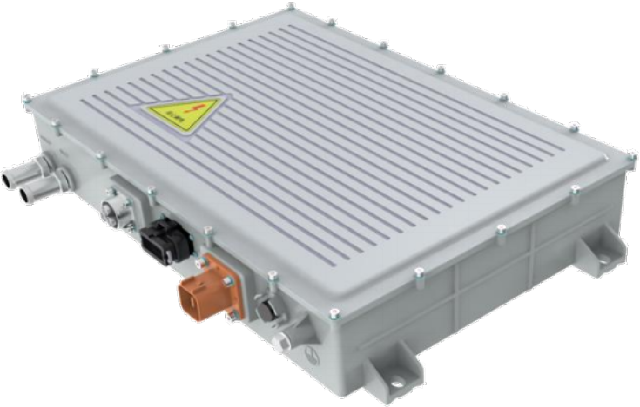

20 kW Liquid-cooled On-board Charger（OBC） Assembly

Product Advantages

Structural and Design Innovations Ensuring Reliability

Designed with modular architecture, the 20kW liquid cooled onboard charger incorporates liquid cooling pathways that enhance thermal dissipation efficiency, critical for maintaining performance under continuous high load. The IP67-rated housing ensures robust environmental protection against particulate and moisture intrusion, suitable for rigorous commercial vehicle environments. Integration of dual-channel input facilitates compatibility with both single-phase and three-phase power infrastructures, enhancing installation flexibility. Furthermore, the onboard charger manufacturer has embedded CAN communication protocols with bootloader support, enabling streamlined firmware upgrading and system diagnostics that reduce downtime and simplify maintenance cycles.

Optimized Performance Delivering Operational Efficiency and User Value

This liquid cooled onboard charger provides active power factor correction, reducing electrical losses and improving grid compatibility, which translates to economic benefits for fleet operators. Its constant current/constant power wake-up functions enable adaptive charging management, ensuring energy delivery aligns precisely with vehicle battery requirements. The fully digital control system supports stable charge output and responds dynamically to varying input conditions. Such attributes elevate system performance reliability and operational uptime, crucial for commercial applications. Additionally, the integrated 12V 3A auxiliary power supply supports auxiliary vehicle systems, optimizing overall vehicular power management efficiency.

Onboard Charging Solutions for Heavy-Duty Commercial Vehicles

In the demanding environment of heavy-duty trucks and public transit buses, the liquid cooled onboard charger plays a critical role in maintaining vehicle uptime with efficient onboard recharging capabilities. The liquid cooled OBC supplier’s product ensures stable power delivery even in harsh thermal and electrical conditions, essential for fleets operating extended schedules. Its compliance with IP67 standards enables resistance to dust and water, common in logistics and transit operations. Integration with vehicle CAN networks facilitates real-time communication of charging status, streamlining operator workflow and predictive maintenance programs, thus supporting operational continuity and increasing overall fleet efficiency.

Marine and Agricultural Vehicle Electrification Applications

The 20kW liquid cooled onboard charger adapts to specialized sectors such as electric vessels and agricultural machinery, which require high-capacity onboard power supplies capable of managing diverse voltage levels and environmental exposure. Its liquid cooled design manages thermal loads effectively in confined engine compartments, and its digital control system ensures stable power output despite variable input conditions prevalent in marine and agricultural settings. The onboard charger manufacturer has engineered this product to meet stringent EMC and safety standards, providing reliability and regulatory compliance crucial for industry adoption. This integration facilitates seamless incorporation into complex vehicle networks, enhancing end-user confidence in electric conversion projects and fleet modernization efforts.

1. Commercial Vehicles – Heavy-duty Trucks/Buses On-board Chargers
2. Special-purpose Vehicles – Modified Special-purpose Vehicles On-board Chargers
3. Industrial Vehicles – Loaders On-board Chargers
4. Electric Vessels – Large Vessels On-board Chargers
5. Agricultural Machinery – Electric Tractors On-board Chargers
6. Passenger Vehicles – Mini Passenger Vehicles On-board Chargers
7. Military-standard Special-purpose Vehicles – Military Vehicles On-board Chargers
