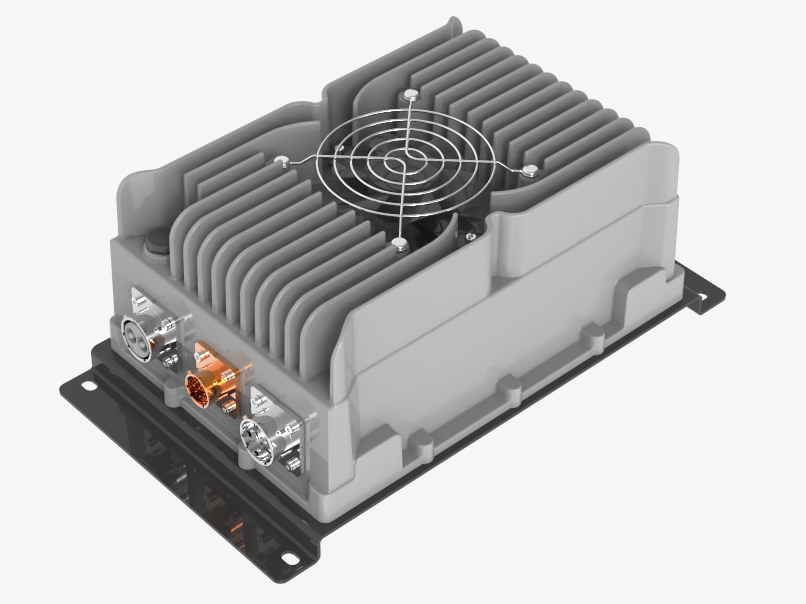

2 kW Air-cooled On-board Charger(OBC) Assembly
No.LK 1630
- Digital Power Supply – Full Digital Control Technology
- Active PFC – Full-range Input of 90~290 VAC
- Comprehensive Protection – Dual Software and Hardware Protection
- CAN Communication – Bootloader Supported
- Background Software – Upgradable Built-in Parameters
- Air-cooled Heat Dissipation – with Over-temperature Protection / IP67 Protection
- Electromagnetic Compatibility – GB Requirements / Adaptable to CE and UL
Description
|
Product model
|
Rated Vin
|
Vin range
|
Rated Pout
|
Rated Vout
|
Vout range
|
Iout range
|
|
LK1630-M13-XX
|
220VAC
|
90~265VAC
|
2.0KW
|
24VDC
|
0~35VDC
|
0~60A
|
|
LK1631-M13-XX
|
220VAC
|
90~265VAC
|
2.0KW
|
60VDC
|
0~80VDC
|
0~35A
|
|
LK1632-M13-XX
|
220VAC
|
90~265VAC
|
2.0KW
|
80VDC
|
0~105VDC
|
0~25A
|
|
LK1635-M13-XX
|
220VAC
|
90~265VAC
|
2.0KW
|
108VDC
|
0~140VDC
|
0~18A
|
|
LK1636-M13-XX
|
220VAC
|
90~265VAC
|
2.0KW
|
144VDC
|
0~200VDC
|
0~14A
|
|
LK1637-M13-XX
|
220VAC
|
90~265VAC
|
2.0KW
|
360VDC
|
0~500VDC
|
0~5A
|
|
LK1639-M13-XX
|
220VAC
|
90~265VAC
|
2.0KW
|
700VDC
|
0~850VDC
|
0~3A
|
Application Fields:
- Electric Power Tools – Lawn Mowers – Portable/On-board Chargers
- Electric Vessels – Small Vessels – Portable/On-board Chargers
- Industrial Vehicles – Forklifts/High-lift Vehicles – Portable/On-board Chargers
- Electric Motorcycles – Portable/On-board Chargers
- Electric Four-wheel Vehicles – Portable/On-board Chargers
- Electric Tricycles/Canopy Vehicles – Portable/On-board Chargers
- Golf Carts/Low-speed Vehicles – Portable/On-board Chargers
