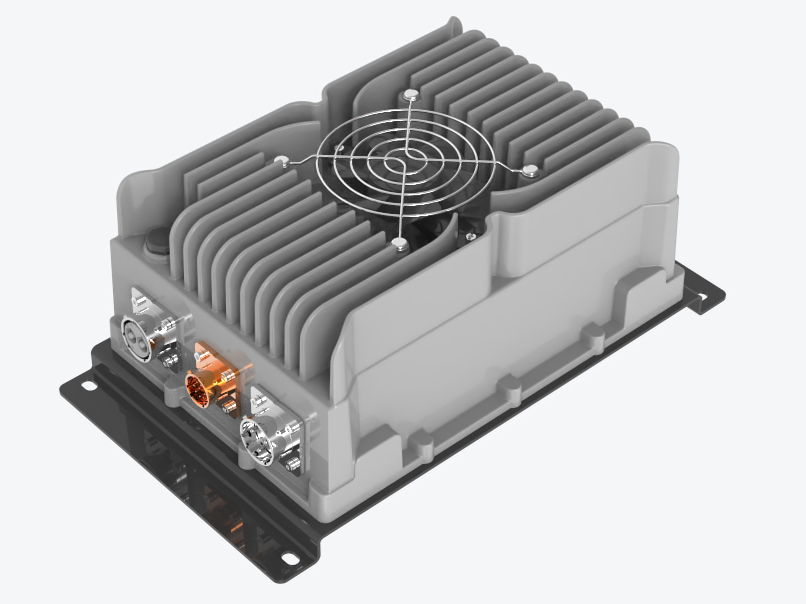

1.2 kW Air-cooled On-board Charger（OBC） Assembly
No.LK 1640
- Digital Power Supply – Full Digital Control Technology
- Active PFC – Full-range Input of 90~290 VAC
- Comprehensive Protection – Dual Software and Hardware Protection
- CAN Communication – Bootloader Supported
- Background Software – Upgradable Built-in Parameters
- Air-cooled Heat Dissipation – with Over-temperature Protection / IP67 Protection
- Electromagnetic Compatibility – GB Requirements / Adaptable to CE and UL
Description
|
Product model
|
Rated Vin
|
Vin range
|
Rated Pout
|
Rated Vout
|
Vout range
|
Iout range
|
|
LK1641-M14-XX
|
220VAC
|
90~265VAC
|
1.2KW
|
48VDC
|
0~68VDC
|
0~25A
|
|
LK1642-M14-XX
|
220VAC
|
90~265VAC
|
1.2KW
|
72VDC
|
0~95VDC
|
0~16A
|
|
LK1643-M14-XX
|
220VAC
|
90~265VAC
|
1.2KW
|
96VDC
|
0~135VDC
|
0~13A
|
|
LK1641-M14-XX
|
220VAC
|
90~265VAC
|
1.5KW
|
48VDC
|
0~68VDC
|
0~30A
|
|
LK1642-M14-XX
|
220VAC
|
90~265VAC
|
1.5KW
|
72VDC
|
0~95VDC
|
0~20A
|
|
LK1643-M14-XX
|
220VAC
|
90~265VAC
|
1.5KW
|
96VDC
|
0~135VDC
|
0~15A
|
Application Fields:
- Electric Power Tools – Lawn Mowers – Portable/On-board Chargers
- Electric Vessels – Small Vessels – Portable/On-board Chargers
- Industrial Vehicles – Forklifts/High-lift Vehicles – Portable/On-board Chargers
- Electric Motorcycles – Portable/On-board Chargers
- Electric Four-wheel Vehicles – Portable/On-board Chargers
- Electric Tricycles/Canopy Vehicles – Portable/On-board Chargers
- Golf Carts/Low-speed Vehicles – Portable/On-board Chargers
